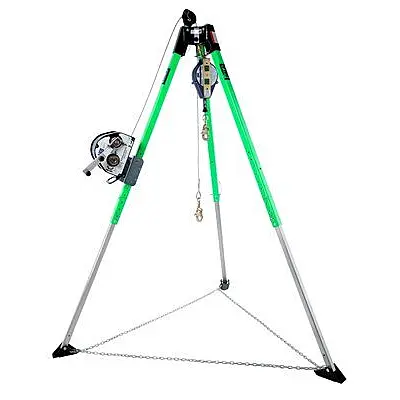

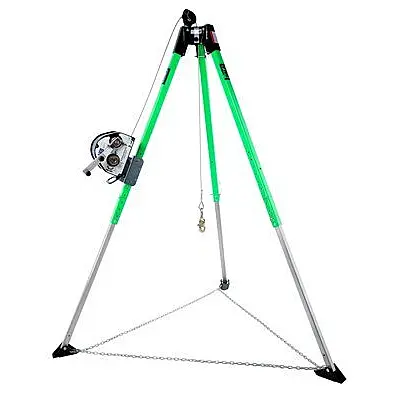

3M™ DBI-SALA® UCT-300 Confined Space Aluminum Tripod – 7 ft
The 3M™ DBI-SALA® UCT-300 Confined Space Aluminum Tripod is a lightweight, portable tripod designed for confined space entry and rescue, offering a 7-foot height for secure fall protection and ease of use in tight spaces.
PRODUCT DESCRIPTION
When it comes to confined space entry/rescue, it is essential that equipment operates perfectly and quickly. DBI-SALA® has an extensive line of rescue and retrieval systems with decades of proven field service. Safety engineers and site directors trust DBI-SALA® for the type of high quality, rugged systems that will ensure top performance when it is needed the most. Our aluminum tripods are extremely lightweight and portable, easily set-up by one worker and can be transported from one location to another. Ideal for confined space entry and emergency rescue applications, they can accommodate a variety of winches and fall arrest devices. Our tripods are loaded with features such as locking legs, simple detent pin style adjustment, quick-mount mechanical device bracket, safety chain to prevent movement and safety shoes that incorporate a rubber sole for flat surfaces and spiked edges for slippery surfaces.
FEATURES
- Safety leg support chain
Prevents movement of the legs when the system is under load providing added support, strength and safety. - 7 ft. (2.1 m) UCT-300 aluminum tripod
Lightweight and durable aluminum construction is easy to transport, set-up and use and will stand up to the elements for extended longevity. - Telescoping adjustable locking legs
Simple detent pin adjustment in 3 in. (7.6 cm) increments offers quick and easy set-up allowing you to custom fit your work space. - Built-in pulley system – can accommodate up to three pulleys
Provides an easy way to rout your mechanical devices lifeline into the confined space, and keeps it centered. - Rubber safety shoes with spiked edges
Offers a non-slipping design for both flat surfaces and uneven terrains for complete safety. - Integrated 5,000 lbs. (22 kN) anchor points
Holes on each side of the tripod head will accommodate standard carabiners and are ideal for attachment of secondary or back-up systems. - Quick connect winch/SRL mount bracket
Easily attach a mechanical device such as winch or 3-way self retracting lifeline directly to the tripod leg. - Order mechanical winch/SRL device(s) separately
Various winch and 3-way self retracting lifeline configurations and options are available to suit most site requirements for added peace of mind.
SPECIFICATIONS
Brands |
DBI-SALA® |
Case Quantity |
1 |
Connected Safety ID Equipped |
No |
Install Type |
Portable |
Maximum Height (Metric) |
2.1 m |
Net Weight (Metric) |
24 kg |
Product Color |
Green, Silver |
Product Type |
Confined Space System |
Recommended Industry |
Construction, General Industrial, Mining, Oil & Gas, Transportation, Utilities, Wind Energy |
Weight Capacity (Metric) |
204 kg |
