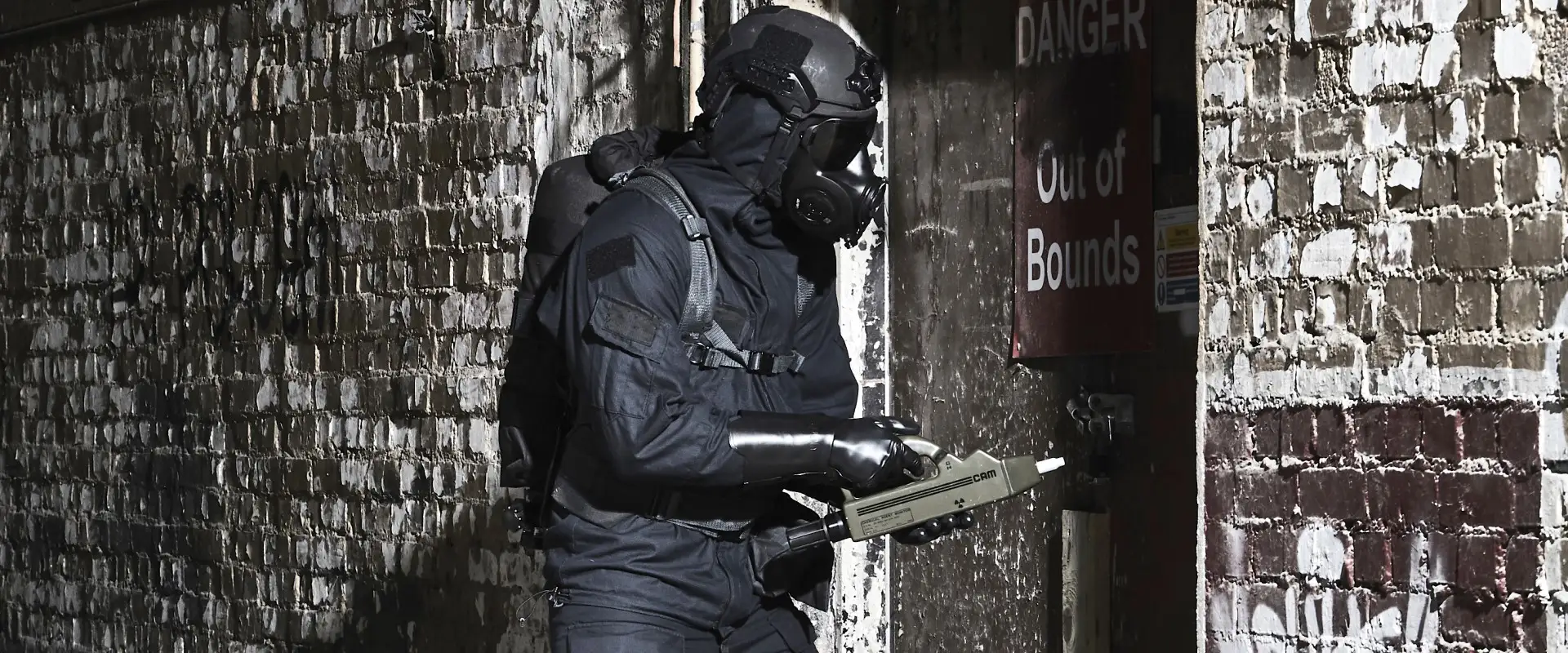

Avon Protection ST53 Specialist Modular SCBA
Part #: 11100/11102
The Avon Protection ST53 Specialist Modular SCBA offers customizable respiratory protection with advanced features, ensuring optimal safety, comfort, and performance for hazardous materials handling and high-risk operations.
PRODUCT DESCRIPTION
Versatile Protection For Tactical Operations
Developed with the unknown elements of a threat scenario in mind, the ST53™ is the most advanced CBRN respiratory solution on the market. It enables a fast response to changing operational conditions in one complete modular system.
A switch between negative (filter) and positive (SCBA) pressure is achieved at the flick of a lever on the front of the mask. And by attaching a short or long duration compressed air cylinder, it is possible to enter a location on filter mode, assess the situation and change to SCBA mode if the need arises.
Suitable For:
- Military
- Special Forces
- First Responders
FEATURES
- Compact Demand Valve (CDV)
- 1st breath activated for “instant on”
- Rugged, compact design delivers high flow rates
- Screw-on-design allows for DIN 40 thread
- Gauge & Whistle
- Located on shoulder straps for easy access
- Positioned for high noise environments and easy gauge reading
- Illuminated gauge for low-light situations
- Stealth Appearance
- Black low profile design
- Lightweight compared to traditional SCBA units
- Silent operation for critical missions
- Comfort
- Ergonomically contoured backframe for comfort
- Adjustable harness allows for quick donning / doffing
- Padded shoulder straps for comfort
SPECIFICATIONS
| Breathing Performance in SCBA mode | |
|---|---|
| Breathing Rate | 103 liters per minute with mask pressure above ambient |
| Environmental range | The operating range is -30oC + 60oC |
| End of cylinder air | Able to sustain positive pressure down to 10 bar cylinder pressure |
| Breathing Performance in ST PAPR Mode | |
| Breathing rate | 125 – 165 liters per minute |
| Breathing Performance in APR Mode | |
| Breathing resistance | Exhalation breathing resistance of no greater than 20mm of water at 85 lpm in a negative pressure mode |
| Inhalation resistance including General Purpose filter | 50 mm of water at 85 lpm |
| Materials Used | |
| Harness on ST53 SCBA | Kevlar webbing with stainless steel nylon hardware |
| Harness on ST53SD SCBA | CORDURA® nylon |
| Backplate | Glass reinforced polycarbonate |
| Cylinder valve | Anodized Aluminum |
| ST-PAPR | GE Noryl with a 10% glass fill |
| Unit/System | Weight (Based on Empty Cylinders) |
| ST53 (excluding cylinder and mask) | 6.6 lbs. |
| Carbon fiber fully wrapped, 2216 PSI, 30 minute | 7.75 lbs. |
| Carbon fiber fully wrapped, 4500 PSI, 30 minute | 7.4 lbs. |
| Carbon fiber fully wrapped, 4500 PSI, 45 minute | 9.9 lbs. |
| Carbon fiber fully wrapped, 4500 PSI, 60 minute | 11.95 lbs. |
| ST-PAPR without CDV, battery or cartridges | 2.5 lbs. |
| ST-PAPR without CDV, two general purpose filters and a lithium Sulphur Dioxide battery | 4.4 lbs. |
| ST53SD 11 cu. ft (includes cylinder but no mask) | 5.2 lbs. |
| ST53SD 17 cu. ft (includes cylinder but no mask) | 4.0 lbs. |
| Single Port FM53 mask (excluding filter) | 1.2 lbs. |
| Dual Port FM53 mask (excluding filter) | 1.3 lbs. |
| Requirements | Actual | |||
|---|---|---|---|---|
| Challenge chemical | Max Peak (mg/m3) | Max Cumulative (mg-min/m3) | Max Peak (mg-m3) | Max Cumulative (mg-min/m3 ) |
| Sarin (GB) | 0.6 | 6 | 0.004 | 0.203 |
| Mustard (HD) | 0.087 | 6 | 0.005 | 0.8 |
| Test Agent | NIOSH CBRN Requirements | Typical Performance | ||
| Mustard (HD) | 6 Hours | > 6 Hours | ||
| Sarin (GB) | 6 Hours | > 6 Hours | ||
| (Data validated by ECBC, Edgewood Chemical Biological Center) | ||||
TECHNICAL DATA
Part Number |
Description |
|---|---|
11100 |
ST53SD 4500 psi, 10 Minute Module with carrier. |
11102 |
ST53 4500 Psi, 60 Minute Cylinder With (RIC) Rapid Intervention Connection. |
