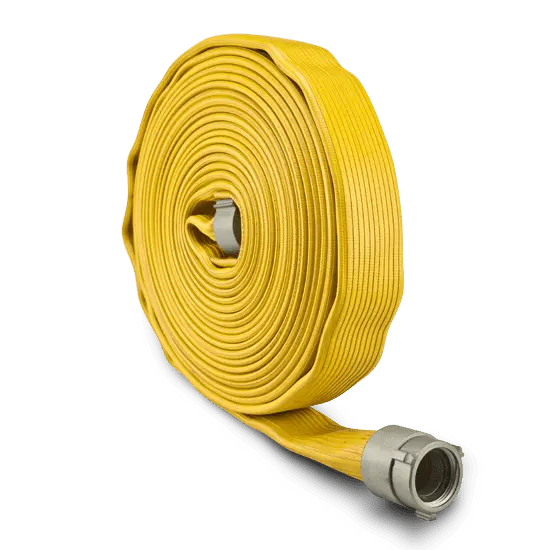

BullDog™ Red Chief®/Yellow Chief Firefighting Hose

BullDog’s exclusive heavy-rib outer cover combines with a unique nitrile-PVC rubber, through-the-weave construction to provide the backbone of excellent hose performance in Red Chief® and Yellow Chief. The heavy-rib construction protects your water supply with a high resistance to cuts, punctures and abrasion. Compact and kink resistant, lightweight and easily maneuverable, Red Chief and Yellow Chief are ideally suited to meet the specifications and tough demands of most municipal fire departments. With a proof pressure of 600 PSI (4200 kPa) and a tolerance for heat and cold, these hoses maintain peak performance in any season or environment, withstanding temperatures from -36º F to 158º F (-37º C to 70º C).

Red Chief/Yellow Chief hose is virtually maintenance free and requires no drying after use. With these powerful hoses, you save time and money, since less backup hose is needed. Red Chief and Yellow Chief are in a class by themselves — clearly superior to traditional attack lines and compliant to the NFPA 1961 standard.

FEATURES

• Ultra Lightweight
  Lightweight and flexible for easy handling and less working stress.
• Best in Class Adhesion
  Provides enhanced hose performance and increased hose life.
• Superior Abrasion Performance
  Nitrile-rubber cover eliminates additional weight issues caused by water pick up during use and greatly increases abrasion resistance, providing a long service life.
• Anti-Burst Technology
  Hose will not burst catastrophically, even with a 1/2” diameter hole through both the jacket and liner.
• Low Drag Coefficient
  A unique exterior rib design makes it easy to pull during attack operations.
• Exceptional Heat Resistance
  High heat resistance as exhibited in the BS 6391 Hot Cube Test. Temperature range -36º F to 158º F (-37º C to 70º C).
• Exceeds Standards
  Red Chief and Yellow Chief are manufactured to meet or exceed NFPA 1961 standard.
• Listing Options
  Agency approvals by UL, ULC, or FM are available on select sizes and colors, inquire for details.

SPECIFICATIONS

Inner Hose Cover & Liner	Nitrile/PVC Rubber
Inner Hose Reinforcement	100% synthetic circular woven
Lengths	50’, 75’, 100’ coupled
Lengths Uncoupled	Up to 660’ (201 m)
Diameter	1 1/2″, 1 3/4″, 2″, 2 1/2″, 3″
Factory Installed Couplings	Per Customer Requirement
Temperature Range	-36º F to 158º F (-37º C to 70º C)
Approvals	UL Listed, FM Approved (1-1/2″, 2-1/2″ Red Chief Only), ULC Listed (1-1/2″, 1-3/4″, 2-1/2″)

TECHNICAL DATA

Size		Pressure						Bowl Size		Weight (50’/15M)		Coil Diameter (50’/15M)
		Service		Proof		Burst
inch	mm							PSI	kPa	PSI	kPa	PSI	kPa	inch		lbs	kg	inch	mm
1-1/2	38**	300	2,100	600	4,200	900	6,300	1-13/16		14	6.4	14.75	375
1-3/4	45**	300	2,100	600	4,200	900	6,300	2-1/16		18	8.2	14.75	375
2	50	300	2,100	600	4,200	900	6,300	2-5/16		22	10.0	16	406
2-1/2	65**	300	2,100	600	4,200	900	6,300	2-7/8		26	11.8	16.5	419
3	75	300	2,100	600	4,200	900	6,300	3-13/32		30	13.6	16.5	419
