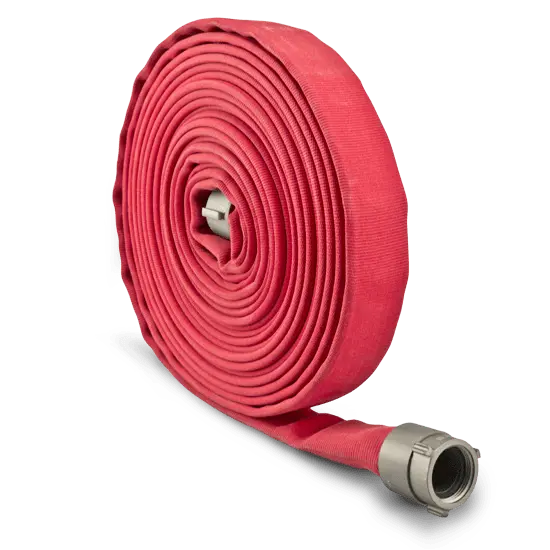

BullDog™ Ultima™ Firefighting Hose
With superior durability and performance, the BullDog™ Ultima™ Firefighting Hose provides exceptional flexibility, abrasion resistance, and consistent water flow, making it a top choice for intense fire suppression and emergency response situations.
PRODUCT DESCRIPTION
Ultima is a durable, double-jacketed attack fire hose constructed with staple-polyester, both warp and filler, and lined with a high-tech EPDM tube. Its design guarantees minimum weight with maximum durability and packability with minimal friction loss. This agility makes it useful for versatile firefighting techniques in a variety of environments, and its durability enables long-lasting use with minimal maintenance required.
The standard color for Ultima Hose is white. Other colors available with our innovative Armour Jacket abrasion-resistant coatings are red, yellow, orange, black, blue, green and tan. From its adaptable uses on the scene to the range of customizable coating colors, this attack fire hose adapts to your department’s needs at every stage.
FEATURES
- Low Maintenance
Easy to clean and maintain - Superior Abrasion Performance
High abrasion resistance when treated with Armour Jacket coating - Extreme Durability
Ozone-resistant for extreme durability. Temperature range -40º F to +112º F (-40º C to 44º C) - ULC
Available on 1-1/2″, 1-3/4″, 2-1/2″ - Exceeds Standards
Ultima is manufactured to meet or exceed NFPA 1961 standard and UL-19 standard
SPECIFICATIONS
| Outer | Polyester staple & filament yarn |
|---|---|
| Outer Hose Treatment | Armour Jacket™ |
| Liner | EPDM |
| Inner Hose Reinforcement | Polyester staple & filament yarn |
| Lengths | 50′ and 100′ |
| Lengths Uncoupled | Expansion ring threaded |
| Diameter | 1 1/2″, 1 3/4″, 2″, 2 1/2″, 3″ |
| Temperature Range | -40º F to +112º F (-40º C to 44º C) |
| Approvals | ULC Listed (1-1/2″, 1-3/4″, 2-1/2″) |
TECHNICAL DATA
| Size (in/mm) | Pressure | Bowl Size (in) | Weight (50’/15M) (lbs/kg) | Coil Diameter (50’/15M) (in/mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Service (PSI/kPa) | Proof (PSI/kPa) | Burst (PSI/kPa) | |||||||||||
| inch | mm | PSI | kPa | PSI | kPa | PSI | kPa | inch | lbs | kg | inch | mm | |
| 1-1/2 | 38** | 400 | 2,800 | 800 | 5,600 | 1,200 | 8,400 | 1-15/16 | 12 | 5.4 | 18 | 457 | |
| 1-3/4 | 45** | 400 | 2,800 | 800 | 5,600 | 1,200 | 8,400 | 2-1/8 | 14 | 6.4 | 18 | 457 | |
| 2 | 50 | 400 | 2,800 | 800 | 5,600 | 1,200 | 8,400 | 2-2/5 | 16 | 7.3 | 20 | 508 | |
| 2-1/2 | 65** | 400 | 2,800 | 800 | 5,600 | 1,200 | 8,400 | 3 | 21 | 9.5 | 21 | 533 | |
| 3 | 75 | 400 | 2,800 | 800 | 5,600 | 1,200 | 8,400 | 3-1/2 | 28 | 12.7 | 21 | 533 | |
