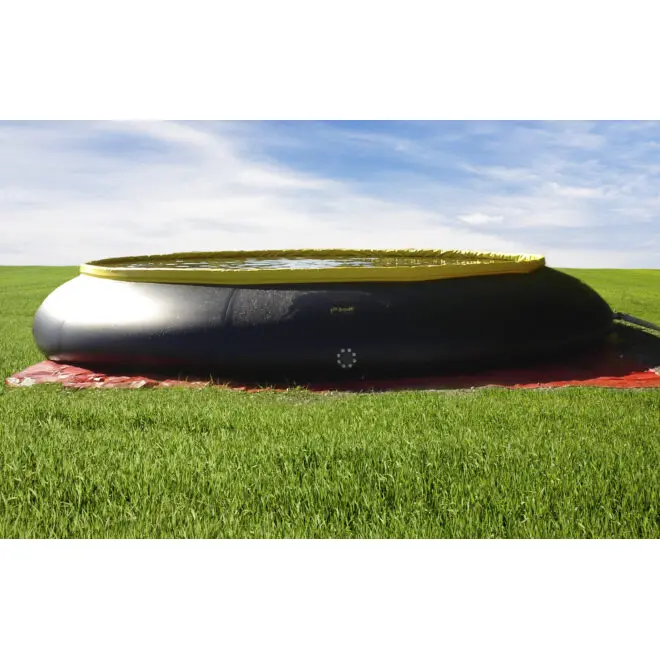

FOL-DA-TANK® Self-Supporting Tanks – Forest Service Model
PRODUCT DESCRIPTION
The self-supporting frameless portable water tanks have been designed to meet the most stringent requirements of rural/urban fire fighting. Problems with inadequate or unusable supplies of water are eliminated by the use of open top self-supporting portable water tanks. In remote areas the self-supporting tanks are designed for standby water containment, water shuttling situations and provide a continuous portable water supply. In remote areas, the SST may be filled by pumping water from a natural water source, such as a stream or creek, with a small gas operated pump. As the self-supporting tank begins to fill with water, its unique design allows it to become self supporting automatically. The SST does not require any additional supporting framework, assembly, or frame installation. Easy lift grab handles are placed evenly around the base of the tank for easy set up. Fol-Da-Tanks new HPR High Performance Rubber is a proprietary formulated fabric to replace Hypalon. Now get the proven high performance fabric used in your Fol-Da-Tanks in your self-supporting tanks! When choosing quality & dependable fabrics choose Fol-Da-Tank HPR. (If interested in HPR – please contact us for a quote)
Applications
-
Firefighting
-

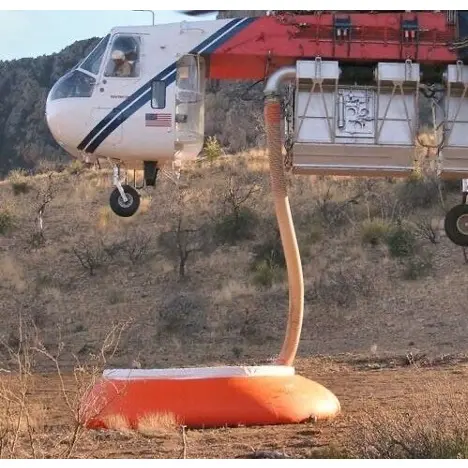

Helicopter dip tank
-
Water relay
-
Mixing tank (fire retardant)
- Hazardous waste
FEATURES
- Special high sides
- Totally Self-Supporting – No frame work – No assembly
- No foot pump necessary
- Heavy duty vinyl
- 500 – 5000 gallon 22 oz. vinyl or 30 oz. vinyl available
- All seams welded for longer life
- Unique Ethafoam collar – No need to inflate
- Onion and Pumpkin style design
- Easy lift grab handles are placed evenly around the base of the tank for easy set up
- 4 support rings
- Compact storage bag included
- All self-supporting tanks are supplied with one threaded flange coupling installed
- Any number and size of hose connections can be added for bottom drafting
- 6,000 – 20,000 tanks are made from 40 oz. high tear strength UV resistant vinyl with 2″ welded heat sealed seams.
- Air collars available
- Special lettering available
- All self supporting tanks come with 1- aluminum flange 1.5″ – 6.0″ male or female and protective flap
- Extra flanges available
- Lifetime warranty on fabric seams
Couplings available: NST*, NPSH*, Storz, Cam* and custom threads*
*Indicate male or female connections available
TECHNICAL DATA
| Part No. |
Volume US gal/liters |
Open Dimensions ft/m (H x Top Dia. x Base Dia.) |
Folded Dimensions (Approx.) in/mm (L x Dia.) |
Weight lb/kg |
|---|---|---|---|---|
| SSTFS-0500 |
500/1900 |
3’x5’x6’6″/0.9×1.5×2 |
24″x17″/610×430 |
50/23
|
| SSTFS-1000 |
1000/3800 |
4’x7’x8’2″/1.2x2x2.5 |
26″x18″/660×460 |
60/27
|
| SSTFS-10000 |
10000/36320 |
6’8″x12’x19’8″/2×3.7×6 |
44″x36″/1120×920 |
200/91 |
| SSTFS-1200 |
1200/4500 |
4’x7’x8’10″/1.2x2x2.7 |
26″x20″/660×510 |
60/27
|
| SSTFS-14000 |
14000/54500 |
7’9″x12’x21’8″/2.4×3.7×6.6 |
48″x38″/1210×970 |
250/113 |
| SSTFS-1600 |
1600/6000 |
4’x7’x9’6″/1.2x2x2.9 |
26″x20″/660×510 |
75/34
|
| SSTFS-1800 |
1800/6800 |
4’x7’x9’10″/1.2x2x3 |
26″X20″/660×510 |
75/34
|
| SSTFS-2000 |
2000/7500 |
4’x7’5″x10’8″/1.2×2.3×3.2 |
26″x20″/660×510 |
75/34
|
| SSTFS-20000 |
20000/75700 |
8’x18’x24’/2.44×5.5×7.3 |
48″x60″/1210×1520 |
400/181 |
| SSTFS-2500 |
2500/9500 |
4’x8’x12’6″/1.2×2.4×3.8 |
34″x22″/860×560 |
95/43
|
| SSTFS-3000 |
3000/11300 |
4’x9’10″x13’1″/1.2x3x4 |
34″x22″/860×560 |
105/48
|
| SSTFS-4000 |
4000/15000 |
4’x12’2″x16’10″/1.2×3.7×5 |
36″X34″/910×610 |
110/50
|
| SSTFS-4800 |
4800/18200 |
5’x11’x16’/1.5x5x3.3 |
38″x26″/970×660 |
110/50 |
| SSTFS-5000 |
5000/19000 |
4’x13’x17’6″/5.3x4x1.2 |
38″x26″/970×660 |
130/59
|
| STFS-6000 |
6000/22700 |
5’x12’x17’/1.5×3.7×5.3 |
40″x28″/1016×710 |
150/67 |
