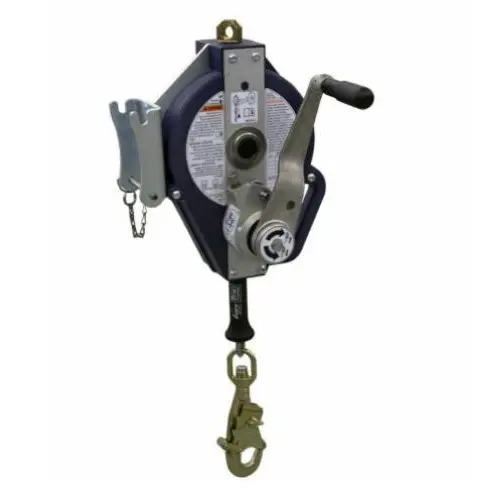

3M™ DBI-SALA® Ultra-Lok™ Self Retracting Lifeline Retrieval – 50 ft 3501104
SKU: 3501104
The 3M™ DBI-SALA® Ultra-Lok™ Self Retracting Lifeline Retrieval is a lightweight, durable fall protection system, featuring a 50-foot retractable lifeline with quick emergency retrieval capabilities for enhanced worker safety in demanding environments.
PRODUCT DESCRIPTION
The 3M™ DBI-SALA® Ultra-Lok™ Self Retracting Lifeline, 3501104, is a self retracting lifeline (SRL) designed with an anti-ratcheting self-adjusting disk brake system that stops a fall within inches to keep you safe when you’re working at heights. Equipped with 50 ft (15.2 m) of 3/16 in (5 mm) galvanized steel cable and lightweight thermoplastic housing, this SRL also includes corrosion-resistant hardware—a swiveling anchorage point and a swiveling snap hook with impact indicator.
Ultra-Lok™ self retracting lifelines (SRLs) are backed by decades of proven field service for absolute confidence, safety and reliability. An SRL’s lifeline will extend as the user moves away, and retract automatically enabling the user to move about within a recommended working area at normal speeds. Should a fall occur, a speed-sensing brake system will activate stopping the fall and reducing the forces imposed on the user to safe levels.
FEATURES
- 3-way emergency retrieval system
The built-in winch is ideal for use in confined spaces and allows the load to be raised or lowered during emergencies. - Integrated quick-connect mounting bracket
Allows device to be quickly and easily attached to a support structure such as a tripod with mating bracket base. - Stowable retrieval handle
The integrated winch handle folds up to stay out of the workers way when not in use for added safety. - 50 ft. (15.2m) 3/16″ (5mm) galvanized steel cable lifeline
Abrasion resistant and extremely durable lifeline construction provides added field longevity. - Rugged and extremely lightweight thermoplastic housing
Compact and durable housing is easy to use, transport, store and is built to last. - Stainless steel dynamic components
The motor spring, fasteners, locking pawls, shaft, springs and rachet plate are stainless steel for added corrosion resistance to extend the life of the device. - Internal energy absorption system
Reduces the forces imposed on a fallen worker to safe levels. - Anti-ratcheting twin disk brake system
Stays locked on rigid and non-rigid (horizontal lifeline) anchors for added safety. - Constant moving brake system pawls
Helps prevent corrosion or freeze-up and provides an audio indicator of a functioning brake system for added safety. - Built-in carrying handle
Integrated handle makes transport, set-up, use and storage quick and easy. - Swiveling anchorage point
Stays in line with load for added security and allows use of a variety of standard carabiners. - Swiveling snap hook with impact indicator
Automatically locks and closes for added safety, swivels to limit lifeline twisting for ease of use and provides visual indication of fall arrest. - Reserve lifeline system
Maintains a reserve for shock absorption when the entire lifeline is extended for added safety. - Ergonomic cable handle equipped with i-Safe™
Provides added comfort and ease-of-use when making connections and holds an i-Safe™ RFID identification tag for recording and storing information on inspections.
SPECIFICATIONS
Capacity |
310 lbs. (141 kg) |
Brand |
DBI-SALA® |
Sub Brand |
Ultra-Lok™ |
Size |
50 ft. (15.2 m) |
Velocity Ship |
No |
i-Safe Equipped |
Yes |
Lifeline Length |
50 ft. (15.2 m) |
Lifeline Hook |
Zinc Plated Steel |
Housing |
Urethane Thermoplastic |
Lifeline |
3/16″ (5mm) dia. 7×19 Galvanized Aircraft Wire Rope |
Model |
3501104 |
Standards |
CSA Z259.2.2 Type 3, Capital Safety Gen. Mfg. Req. |
Physical Dimensions |
11.50 x 10.50 x 7.20 (in) |
Physical Weight |
22.80 lbs. (10.3kg) |
Product Styles |
Single Lifeline |
Product Types |
3-Way Emergency Retrieval |
Housing Type |
Thermoplastic |
Lifeline Type |
Galvanized Cable |
Mounting Type |
Block to Anchor Point |
Weight Group |
Over 10 lbs. (4.5 kg) |
Other Standards |
ANSI Z359.14, ANSI A10.32, OSHA 1910.66, OSHA 1926.502 |
