Avon Protection Mi-TIC E L Firefighter Thermal Imaging Camera
Part #: MI-TIC-EL-1/MI-TIC-EL-3

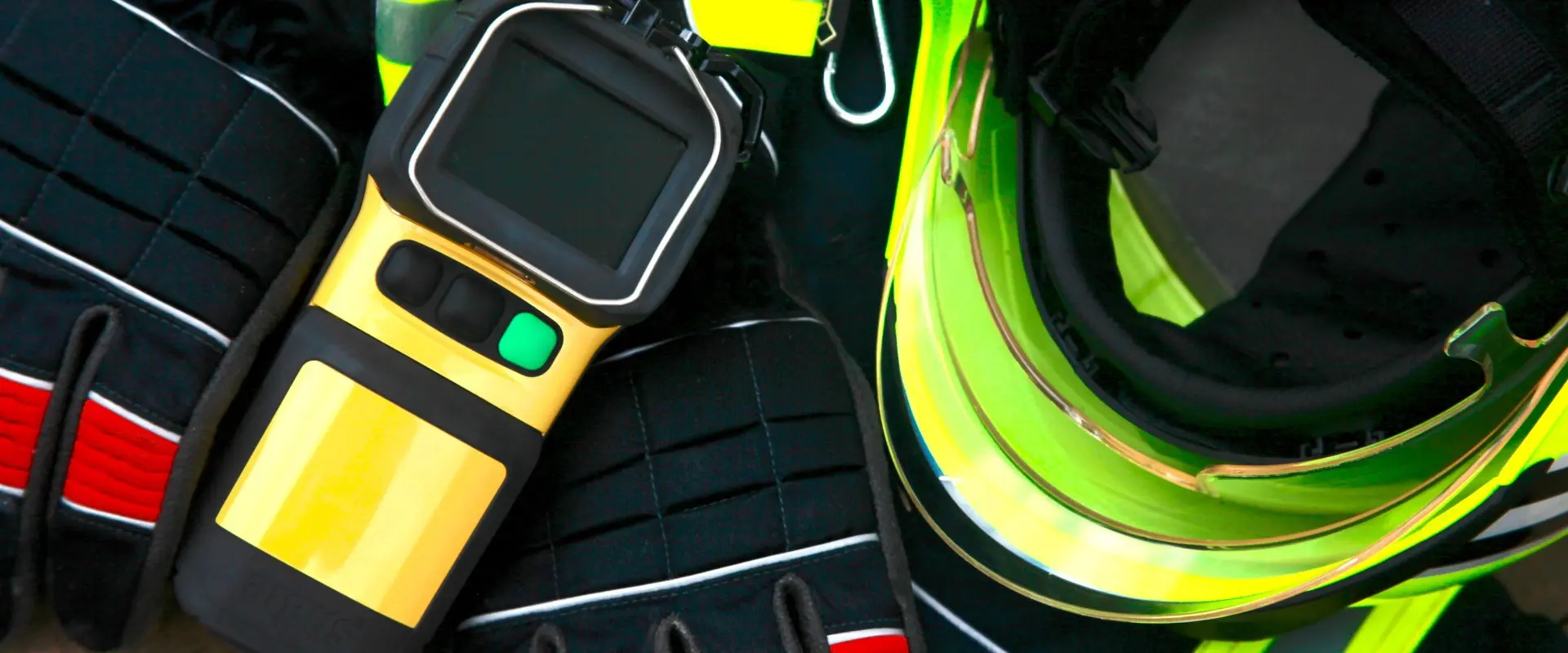

The Avon Protection Mi-TIC E L Firefighter Thermal Imaging Camera delivers high-resolution thermal imagery, aiding firefighters in navigating hazardous environments and improving safety during critical operations.
PRODUCT DESCRIPTION
The Mi-TIC E L thermal imaging camera provides a crystal clear image with a dynamic range up to 1400°F (760°C) and at the same time can still see very low temperature objects, which is ideal for casualty searches.
Applications include: Ventilation location selection, Search and rescue (fire and non-fire), Seat of fire localization, overhaul, Size-up.
NFPA 1801:2021 Standard on Thermal Imagers for Fire Services. All parts of the system are compliant with EU directive 2011/65/EC.
Industry Usage
- Firefighting
- First Responders
FEATURES
Ease of Use
- Available in 1- or 3-button option
- 3-button models are user configurable
- On/Off / NFPA “TI BASIC” button
- Lightest large screen NFPA 1801 compliant thermal imager at just 1.9lb (870g)
Designed to Meet Your Application
- Image freeze, image capture and video capture*
- Software customization tool- activate/deactivate desired functionality
- Compact Truck Charger- space saving smart charger ensures camera is ready to respond
*3-button models only
Image Quality
- 320×240 Resolution; Display size diagonal – 3.5” (90mm)
- High dynamic temperature range up to 1400°F (760°C)
- Uninterrupted imaging with Tri-Mode Sensitivity
- Unmistakable fixed scene colorization
- Digital spot temperature measurement*
- Dynamic Scene Enhancement
*3-button models only
Powered by the Ignis Engine
- Enhanced image quality
- Latest sensor technology
- Class leading battery technology with 5-year warranty
SPECIFICATIONS
| Environmental Data | |
|---|---|
| Thermal Conditions | The camera has been designed to operate:
Continuously between -20°C (-4°F) and +85°C (185°F) At 150°C (300°F) for 15 minutes At 260°C (500°F) for 5 minutes |
| Sealing | IP67; will withstand immersion in water |
| Impact | The camera will withstand a drop from a height of 2m (6.5 ft) onto concrete |
| Storage | It is recommended that, for maximum effective operational life, the storage temperature is kept between -20°C (-4°F) and +40°C (104°F) |
| Detector | |
| Sensor Type | Un-cooled Microbolometer |
| Sensor Material | Amorphous Silicon (ASi) |
| Resolution | 384 x 288px |
| Pixel Size | 17 µm |
| Spectral Response | 7.5 – 14µm |
| MDTD (Full Camera System Sensitivity) | 50mK (0.05°C) typical (Minimum Discernible Temperature Difference) |
| NETD (Sensor Sensitivity) | <50mK (<0.05°C) |
| Dynamic Range | -40°C to 760°C (-40°F to 1400°F) |
| Refresh Rate | 60 Hz |
| Direct Temperature Measurement (DTM) | -40°C to 760°C (-40°F to 1400°F) |
| Lens | |
| Lens Material | Germanium Composite |
| Focal Length | 1m to infinity, optimized at 4m (3ft to infinity, optimized at 13ft) |
| Aperture | f/1.0 |
| Field of View | 50° horizontal, 37.5° vertical, 62° diagonal |
| Display | |
| Type | High-grade, industrial, color TFT active matrix LCD |
| Size | 90mm (3.5”) |
| Pixel Format | QVGA 320 x 240 (each pixel RGB format; total 230,400 pixels) |
| Video Input | Sensor synchronized direct digital drive |
| Backlight | 350cd/m2 |
| Mechanical Data | |
| Camera Dims (H x W x D) | 216 mm x 110 mm x 82 mm (8.5” x 4.3” x 3.2”) |
| Camera Weight | 695 g (1.5 lbs.) without battery |
| 870 g (1.9 lbs.) with standard battery | |
| Std Battery Dims (H x W x D) | 87 mm x 76mm x 28mm (3.4” x 3.0” x 1.1”) |
| Std Battery Weight | 175 g (6 oz) |
| Charger Dims (H x W x D) | 167 mm x 112 mm x 120 mm (6.5” x 4.4” x 4.7”) |
| Charger Weight | 600 g (1.3 lbs.) |
| Main Camera Body | Radel® R-5100 and Santoprene® |
| LCD Window | Ultrason® E 2010 HC |
| LCD Bumper | Santoprene® |
| GE Window Collar | Radel® R-5100 and Santoprene® |
| Lens Window | Germanium (2mm thick) with durable coating |
| Electrical Data | |
| Power Consumption | <3 W typical |
| Start-Up Time | 5 seconds typical |
| Std Battery Type | Lithium Iron Phosphate Rechargeable Battery |
| Std Battery Capacity | 1800 mAh, 6.4V |
| Std Battery Life | In excess of 4 hours @ ambient temperature (22°C / 72°F) |
| Std Battery Charge Time | Less than 4 hours |
| Std Battery Recharge Cycles | Over 2000 cycles |
| Std Battery Charging Temp. | 5°C to 40°C (41°F to 104°F) |
| Charger Input Voltage | 11V – 30V DC (12V and 24V vehicle systems) |
| Charger Operating Temp. | 0°C to 40°C (32°F to 104°F) |
| Compliance Data | |
| Performance | NFPA 1801:2021 Standard on Thermal Imagers for the Fire Service |
| Safety | IEC 62368-1:2014 and related national standards |
| UL 121201 / CSA C22.2 No. 213:2017 Class I, Div 2 | |
| Groups C, D T4; Class II, Div 2 Groups F, G T4 | |
| Emissions RFI/EMC | EN 55032:2015, Class A |
| EN 54098:2010 | |
| FCC CFR 47 Subpart 15b, ICES 003:2017 | |
| AUS/NZ 4251.1 | |
| Immunity | EN 55103-2:2009 |
| Vibration/Shock | BS EN 60721-3-2 Class 2M3 |
| RoHS | All parts of the system are compliant with EU Directive 2011/65/EC |
