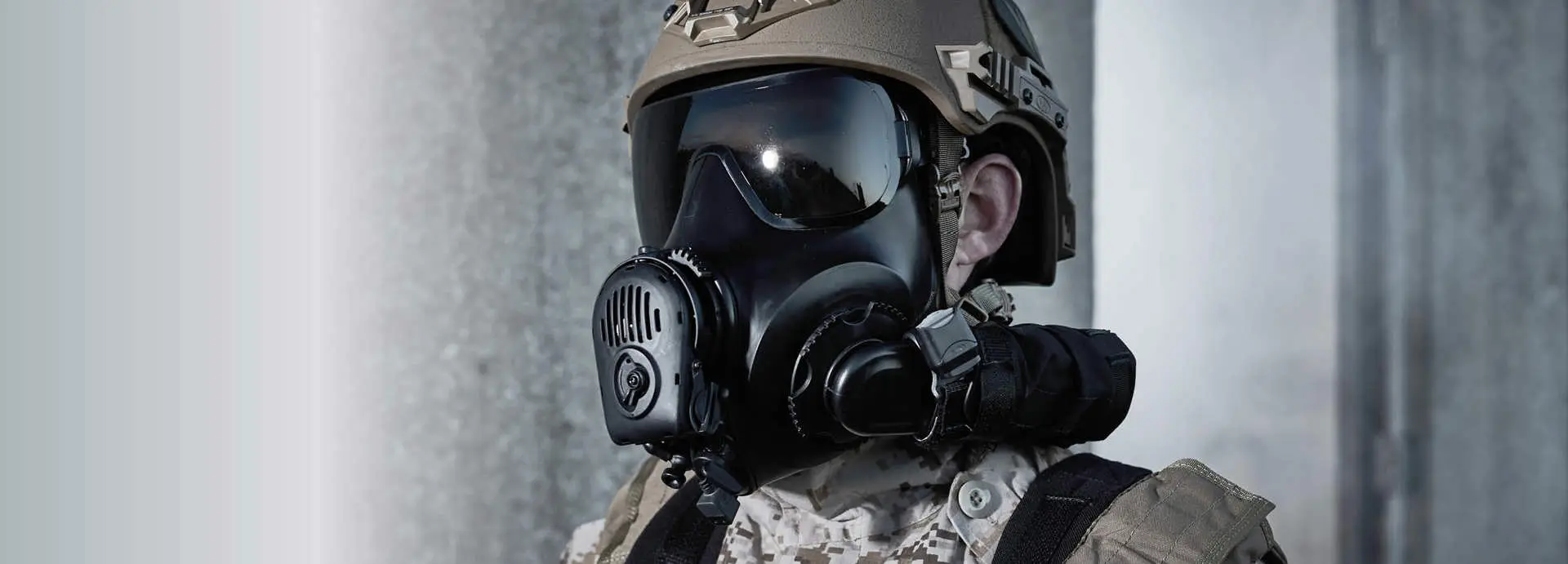

Avon Protection FM53™ Air Purifying Respirator
Part #: 72601-250-1/72601-250-9/72601-250-6/72601-250-7
The Avon Protection FM53™ Air Purifying Respirator delivers exceptional protection against toxic gases and particulate matter, offering a secure, comfortable fit for military, tactical, and industrial use in hazardous environments.
PRODUCT DESCRIPTION
The FM53 is globally acclaimed as the most technically advanced mask and offers both positive pressure SCBA, PAPR and negative pressure APR/capability. All of these capabilities are available from one mask platform without the need to change components. Available in right, left or twin port filter configurations.
The FM53 system was developed to address the multiple threats encountered on the modern battlefield, war on terrorism and peace keeping operations. It provides protection against traditional chemical and biological warfare agents and select toxic industrial materials (TIMs).
Suitable For:
- First Responders
- Military
- Special Forces
FEATURES
- Field of View
- Panoramic single lens visor
- Optically correct visor
- Scratch Resistant
- Comfort
- 4 face piece sizes for improved fit
- Chlorobutyl rubber and silicone blend mask
- Low profile design for superior weapons integration
- Communications
- Electronic Communication Port for integrated voice projection and radio communication
- Optional VPU provides ability to easily communicate while wearing mask
- Multiple Modes
- Functions as both a negative and positive pressure mask
- VREU lever for easy switching between negative and positive pressure modes
SPECIFICATIONS
| CBRN Agent Resistance | ||
|---|---|---|
| Mustard (H) | Greater than 36 hours | |
| Sarin (GB) | ||
| Soman (GD) | ||
| VX | ||
| Laboratory Protection Factor Performance (Sodium Chloride) | Greater than 10,000
NIOSH certified at 2000PF |
|
| Breathing Performance (Excluding Filter) | ||
| Re-Breathed CO2 | 0.80% | |
| Inhalation Resistance | 85 l/Min | 15 mm WG |
| 160 l/Min | 32 mm WG | |
| Exhalation Resistance Negative Pressure Mode | 85 l/Min | 15 mm WG |
| 160 l/Min | 30 mm WG | |
| Exhalation Resistance Positive Pressure Mode | 40 mm WG | |
| Weight | ||
| FM53 Mask (Excluding Filter) | 1.6 lbs | |
| Field of View | ||
| Visual Field Score – NIOSH CBRN Standard | 96 | |
| Materials Used | ||
| FM53 Mask Visor | Flexible polyurethane | |
| FM53 Mask Facepiece | Chlorobutyl/Silicone Rubber | |
| Hydration | ||
| Drinking Flow Rate | >230 ml/min | |
TECHNICAL DATA
Part Number |
Size |
Description |
|---|---|---|
72601-250-1 |
XS |
FM53 Single Port Assembly (No Kit) |
72601-250-9 |
S |
FM53 Single Port Assembly (No Kit) |
72601-250-6 |
M |
FM53 Single Port Assembly (No Kit) |
72601-250-7 |
L |
FM53 Single Port Assembly (No Kit) |
