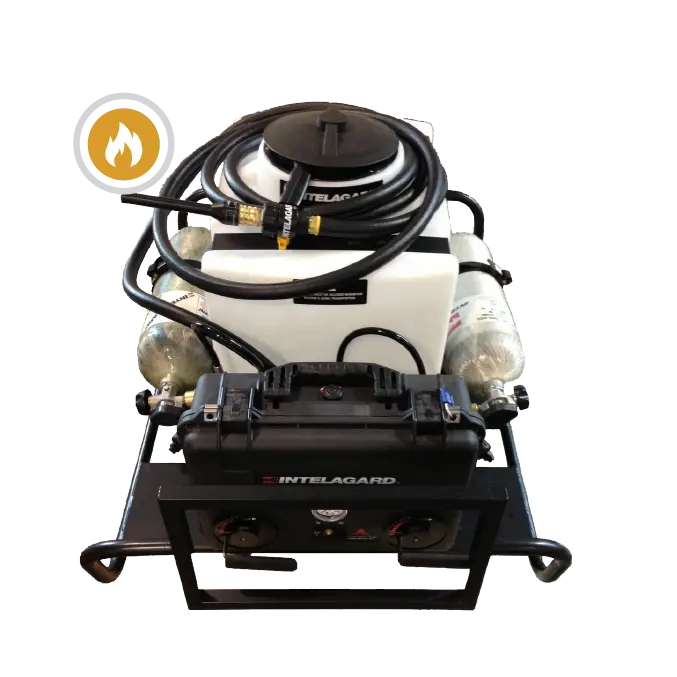

Intelagard Merlin® MP (Man Portable) Compressed Air Foam System
Optimized for portability and efficiency, the Merlin® MP (Man Portable) Compressed Air Foam System delivers fast and effective foam application for fire suppression in remote or difficult-to-access areas.
PRODUCT DESCRIPTION
The Merlin® MP (Man Portable) CAFS by Intelagard has compact performance, power and reliability in one package. This CAF system is perfect for prescribed burn, pretreating electric poles, running grass and falling embers. Well-suited for UTV’s, pickups and ATV’s. The Merlin MP can be used in its self contained configuration, or as a powerful drafting unit. Transport this miniature powerhouse in any light to medium sized vehicle! Firefighters, wildland professionals and hazmat remediators are just a few of the first responder personnel who will find this piece of equipment irreplaceable.
Industry Usage
- Firefighter & First Responder Industry
FEATURES
- High performance handset
- Quick release CAF module
- Quick release plumbing connections
- SCBA cradles
- Rugged utility frame
- Adjustable air injection
- Wide mouth fill port
- Air compressor port
- Drafting capability
- Fully self-contained
- Powder coated utility frame
- Drafting hose
- 26-gallon tank
- Wide selection of nozzles
- Foam formulas
- Custom handset diameters and hose lengths available
- 4500 PSI (310.26 BAR) air cylinder
- Drafting hose
- Custom hose lengths
- Terrain spray bar to create 4-foot wet lines (1.21m)
SPECIFICATIONS
| System Dimensions | 39″ L x 31″ W x 22″ H (99.06 x 78.74 x 55.88 cm) |
|---|---|
| Operating Pressure | 100 PSI (6.9 BAR) |
| Liquid Capacity | 26 gal. (98.42 L) |
| Projection Distance | Up to ~45 ft. (13.7 m)* |
| Foam Expansion | Up to ~35:1* |
| System Weight Dry (w/o cylinders) | ~87 lbs. (40 kg) w/(2) empty cylinders add ~24 lbs. (11 kg) |
| System Weight Full (w/26 gal. (98.42 L) and (2) full air cylinders | ~330 lbs. (150 kg) |
| Standard Hose | 20’ (6.1m), 3/4” (1.9cm) diameter |
| Handset/Nozzle | Intelagard High Performance Handset with Smoothbore Nozzle |
*Depending on foam, hose and nozzle used
TECHNICAL DATA
SKU |
Configuration |
|---|---|
46191601-V868 |
With Two Air Cylinders |
46191601-V867 |
Without Air Cylinders |
