Trelleborg™ Conventional Lifting Bags – 8 BAR (116 PSI)
Trelleborg™ Conventional Lifting Bags – 8 BAR (116 PSI) are robust, high-pressure lifting bags designed for safe and efficient lifting in demanding industrial and rescue applications.
PRODUCT DESCRIPTION

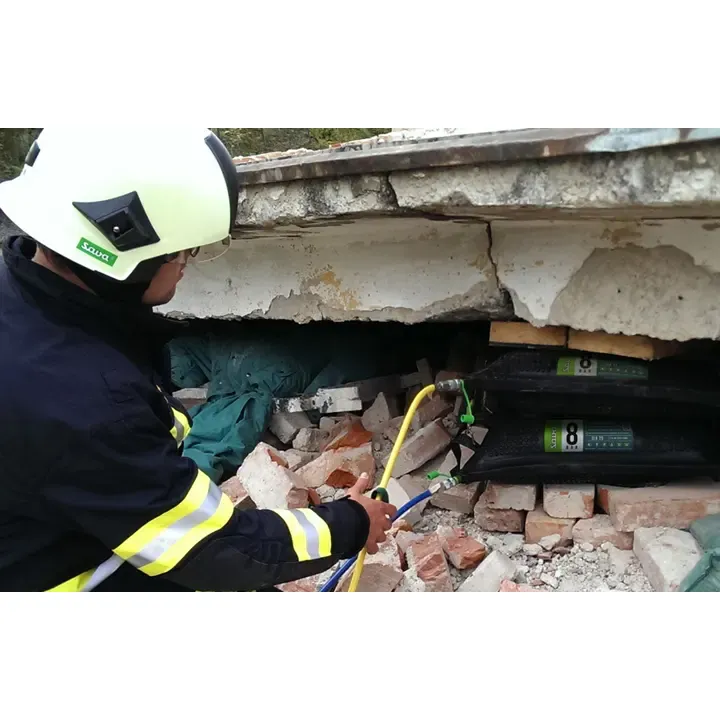

High-pressure lifting bags are used for lifting the heaviest loads. High-pressure lifting bags exert maximum force in a concentrated area, making them ideal when lifting rigid structures in tight places. Their unique structure also allows use in load shifting, heavy truck or aircraft recovery and different moving situations.
FEATURES
- Stackable up to 2 bags
- Extra durable
- Thin design
SPECIFICATIONS
| BAR | 8 |
|---|---|
| PSI | 116 |
| Certification | EN 13731 |
TECHNICAL DATA
| Type | Part Number |
Dimensions | Weight | Working Pressure |
Air Requirement |
Max. Lifting Capacity |
Max. Lifting Height |
||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | |||||||
| [cm] / [inch] | [cm] / [inch] | [cm] / [inch] | [kg] / [lbs] | [BAR] / [PSI] | [l] / [cu./Ft.] | [t] / [US Tons] | [cm] / [inch] | ||
| SLK 1 | 77973 | 15 / 6″ | 15 / 6″ | 2.5 / 1″ | 0.55 / 1.2 | 8 / 116 | 5 / 0.2 | 1.1 / 1.2 | 8 / 3.1″ |
| SLK 3 | 77974 | 22.5 / 9″ | 22.5 / 9″ | 2.5 / 1″ | 1.25 / 3 | 8 / 116 | 15 / 0.5 | 2.7 / 3 | 13 / 5.1″ |
| SLK 6 | 77975 | 30 / 12″ | 30 / 12″ | 2.5 / 1″ | 2 / 4 | 8 / 116 | 42 / 1.5 | 5.5 / 6.1 | 16 / 6.3″ |
| SLK 10 | 76734 | 38 / 15″ | 38 / 15″ | 2.5 / 1″ | 3,5 / 8 | 8 / 116 | 86 / 3.0 | 10.1 / 11.1 | 21 / 8.3″ |
| SLK 14 | 76735 | 45 / 18″ | 45 / 18″ | 2.5 / 1″ | 5 / 11 | 8 / 116 | 152 / 5.4 | 13.5 / 14.9 | 25 / 9.8″ |
| SLK 21 | 76736 | 55 / 22″ | 55 / 22″ | 2.5 / 1″ | 7 / 15 | 8 / 116 | 296 / 10.5 | 21.1 / 23.2 | 30 / 11.8″ |
| SLK 25 | 76737 | 61 / 24″ | 61 / 24″ | 2.5 / 1″ | 9 / 20 | 8 / 116 | 416 / 14.7 | 25.2 / 27.7 | 34 / 13.4″ |
| SLK 33 | 76738 | 69 / 27″ | 69 / 27″ | 2.5 / 1″ | 11 / 24 | 8 / 116 | 621 / 21.9 | 33 / 36.3 | 38 / 15″ |
| SLK 45 | 76739 | 78 / 31″ | 78 / 31″ | 2.5 / 1″ | 14 / 31 | 8 / 116 | 921 / 32.5 | 44.6 / 49.1 | 42 / 16.5″ |
| SLK 55 | 76794 | 87 / 34″ | 87 / 34″ | 2.5 / 1″ | 18 / 40 | 8 / 116 | 1305 / 46.1 | 55 / 60.5 | 47 / 18.5″ |
| SLK 70 | 573241 | 94.5 / 37″ | 94.5 / 37″ | 2.5 / 1″ | 22.5 / 50 | 8 / 116 | 1505 / 53.2 | 70.4 / 77.4 | 52 / 20.5″ |
