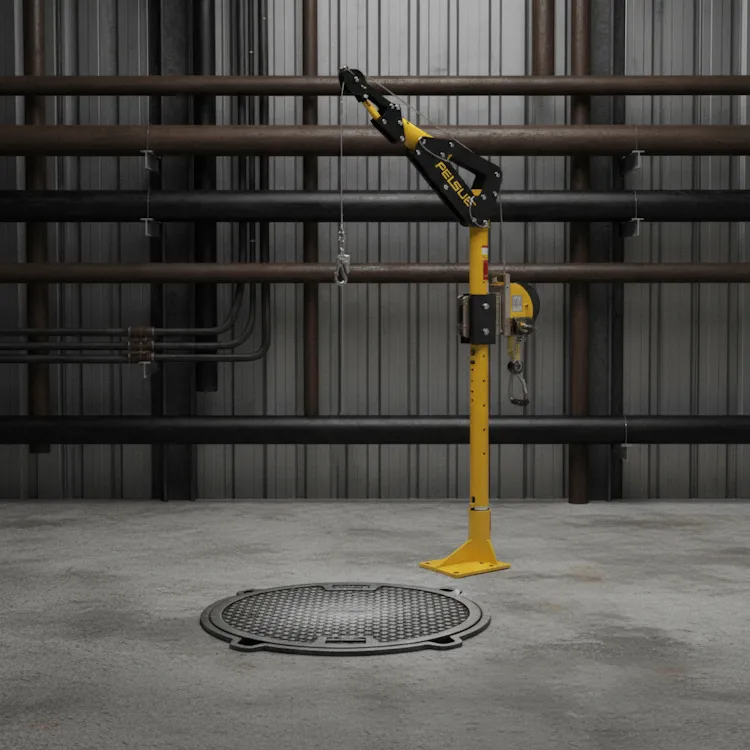

Pelsue® Permanent Base Davit Fall Protection System
SKU: DK1824/DK3036/DK4248
The Pelsue® Permanent Base Davit Fall Protection System provides a sturdy and long-term solution for fall protection, offering safety and stability in fixed work environments.
PRODUCT DESCRIPTION
The Pelsue® Davit System is extremely versatile and can be used for both fall protection and rescue & retrieval. The system includes a universal bracket for the mounting of a hoist, standard SRL, or 3-Way SRL, and offers an additional mounting location for using two systems.
All Pelsue® Davit Systems are built from structural aluminum, allowing for lightweight and portable use. They are also specially engineered to be fully set up in about 5 minutes. The Pelsue® Davit System is proudly made in America with the highest quality materials to ensure the system will provide you years of service.
Every Davit system includes 1 hoist bracket & mounting plate for use with a standard retrieval hoist. No hoist included. All Pelsue® Davit Systems are man rated to 310 lbs.
TECHNICAL DATA
Complete Arms |
Description |
Weight |
|---|---|---|
DK1824 |
Davit Mast, includes center post (CP60), elbow (EM01), and 18″/24″ offset arm (BA24) (Base and hoist sold separately) |
45 lbs. |
DK3036 |
Davit Mast, includes center post (CP60), elbow (EM01), and 30″/36″ offset arm (BA36) (Base and hoist sold separately) |
48 lbs. |
DK4248 |
Davit Mast, includes center post (CP60), elbow (EM01), and 42″/48″ offset arm (BA48) (Base and hoist sold separately) |
51 lbs. |
Individual Parts |
Description |
Weight |
|---|---|---|
BA24 |
Offset Arm, aluminum, with pulley & U-bracket, 18″/24″ offset reach |
7 lbs. |
BA36 |
Offset Arm, aluminum, with pulley & U-bracket, 30″/36″ offset reach |
10 lbs. |
BA48 |
Offset Arm, aluminum, with pulley & U-bracket, 42″/48″ offset reach |
12 lbs. |
EM01 |
Elbow, fabricated aluminum, reversible for different offset lengths |
13 lbs. |
CP60 |
Center post with hoist mounting bracket, aluminum, 60″ H |
26 lbs. |
CPX-15 |
Center post extension, powder coated steel, 15″ |
22 lbs. |
CPX-24 |
Center post extension, powder coated steel, 24″ |
25 lbs. |
CPX-36 |
Center post extension, powder coated steel, 36″ |
31 lbs. |
Mount Sleeves |
Description |
Weight |
|---|---|---|
DSP-F2 |
Coated steel, center floor mount – can anchor to surfaces such as floors, truck beds, catwalks, etc. |
24 lbs. |
DSS-F2 |
Stainless steel, center floor mount – can anchor to surfaces such as floors, truck beds, catwalks, etc. |
24 lbs. |
DSP-F1 |
Coated steel, floor mount – can anchor to surfaces such as floors, truck beds, catwalks, etc. |
24 lbs. |
DSS-F1 |
Stainless steel, floor mount – can anchor to surfaces such as floors, truck beds, catwalks, etc. |
24 lbs. |
DSP-W1 |
Coated steel – wall mounted. Can anchor to truck bumpers, tank walls, sides of catwalks, meter pits, clarifiers, etc. |
22 lbs. |
DSS-W1 |
Stainless steel – wall mounted. Can anchor to truck bumpers, tank walls, sides of catwalks, meter pits, clarifiers, etc. |
22 lbs. |
DSP-A1 |
Coated steel – inside 90° angle. The corner mount is anchored by bolts to reinforced truck bumpers, walls, etc. |
26 lbs. |
DSP-A2 |
Coated steel – outside 90° angle. The corner mount is anchored by bolts to reinforced truck bumpers, walls, etc. |
26 lbs. |
DSP-C2 |
Coated steel – cylinder core mount is drilled into existing concrete or poured into fresh concrete. Must be secured to the concrete with grout or epoxy compatible with plant conditions. |
9 lbs. |
DSS-C2 |
Stainless steel – cylinder core mount is drilled into existing concrete or poured into fresh concrete. Must be secured to the concrete with grout or epoxy compatible with plant conditions. |
9 lbs. |
DSP-C1 |
Coated steel – placed in fresh concrete, this sleeve mounts flush with the floor and is great for high traffic areas where trip hazards are a concern. |
21 lbs. |
DSS-C1 |
Stainless steel – placed in fresh concrete, this sleeve mounts flush with the floor and is great for high traffic areas where trip hazards are a concern. |
21 lbs. |
DSP-F3 |
Coated steel – the existing concrete flush floor mount is drilled and bolted in concrete or welded or bolted in steel. Great for high traffic areas where trip hazards are a concern. |
23 lbs. |
DSS-F3 |
Stainless steel – the existing concrete flush floor mount is drilled and bolted in concrete or welded or bolted in steel. Great for high traffic areas where trip hazards are a concern. |
23 lbs. |
DSR-S03 |
Portable Wall Mounted Base – zinc plated carbon steel. Clamping via 8 bolts, the wall mount straddles walls of tanks, caissons, shorings, etc. up to 3″ thick. |
58 lbs. |
DSR-A08 |
Clamping Portable Wall Mounted Base – yellow powder coated. For clamping onto a wall ranging from 3″ to 8″ thick walls. |
35 lbs. |
DSR-ADJ |
Adjustable Wall Mounted Base – yellow powder coated. The adjustable wall mount can clamp to any wall ranging from 1″ – 23.25″ thick. |
55 lbs. |
DSC-S2 |
Sleeve accessory – zinc plated steel sleeve cap. Used to seal sleeves when not in use. Has a rubber seal that expands into sleeve. |
1 lb. |
DSC-S1 |
Sleeve accessory – stainless steel sleeve cap. Used to seal sleeves when not in use. Has a rubber seal that expands into sleeve. |
1 lb. |
DSC-P1 |
Sleeve accessory – ABS plastic sleeve cap. Used to seal sleeves when not in use. Has a rubber seal that expands into sleeve. |
0.24 lbs. |
Permanent Mount Sleeves
Model |
Description |
|---|---|
DSP-F1 |
Floor Mounted: Coated Steel |
DSS-F1 |
Floor Mounted: Stainless Steel DSG-F1 – Floor Mounted: Galvanized Steel |
DSP-F2 |
Center Floor Mounted: Coated Steel |
DSS-F2 |
Center Floor Mounted: Stainless Steel |
DSG-F2 |
Center Floor Mounted: Galvanized Steel |
DSP-W1 |
Wall Mounted: Coated Steel |
DSS-W1 |
Wall Mounted: Stainless Steel |
DSG-W1 |
Wall Mounted: Galvanized Steel |
DSP-A1 |
Inside Corner Mounted: Coated Steel |
DSP-A2 |
Outside Corner Mounted: Coated Steel |
DSP-C2 |
Cylinder Core: Coated Steel |
DSS-C2 |
Cylinder Core: Stainless Steel |
DSP-C1 |
Flush Floor Mounted (Fresh Pour Concrete): Coated Steel |
DSS-C1 |
Flush Floor Mounted (Fresh Pour Concrete): Stainless Steel |
DSP-F3 |
Flush Floor Mounted (Existing Concrete): Coated Steel |
DSS-F3 |
Flush Floor Mounted (Existing Concrete): Stainless Steel |
Portable Wall Mounted Bases
Model |
Description |
|---|---|
DSR-S03 |
Portable Wall Mount: Zinc Plated Carbon Steel |
DSR-A08 |
Clamping Portable Wall Mount: Yellow Powder Coated |
DSR-ADJ |
Adjustable Wall Mount: Yellow Powder Coated |
Sleeve Caps
Model |
Material |
|---|---|
DSC-S2 |
Powder Coated Steel |
DSC-S1 |
Stainless Steel |
DSC-P1 |
Plastic 0 |
