Trelleborg™ Flat Bags – 8 BAR (116 PSI)
Trelleborg™ Flat Bags – 8 BAR (116 PSI) are durable, high-pressure bags designed for reliable performance, offering a secure solution for industrial and emergency applications.
PRODUCT DESCRIPTION

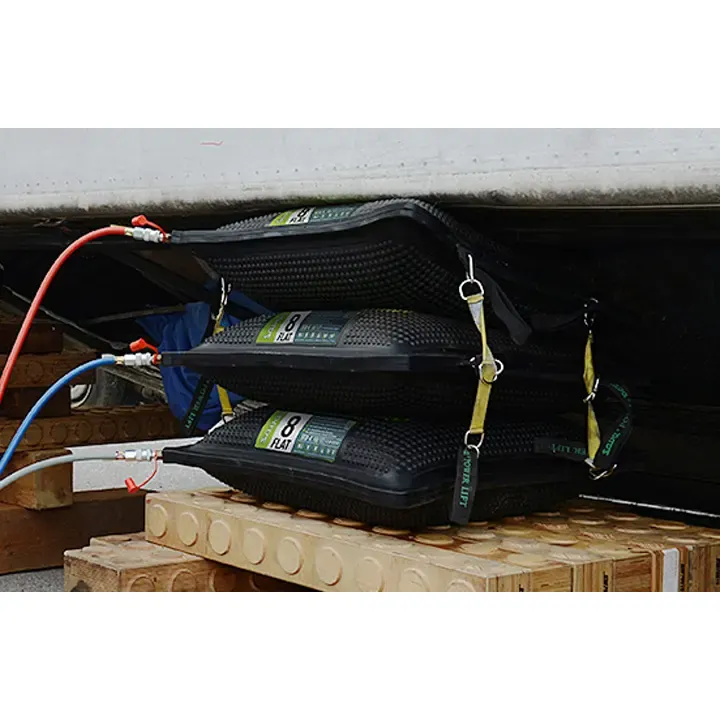

Trelleborg™ high-pressure lifting bags are used for lifting the heaviest loads. High-pressure lifting bags exert maximum force in a concentrated area, making them ideal when lifting rigid structures in tight places. Their unique structure also allows use in load shifting, heavy truck or aircraft recovery and different moving situations.
FEATURES
- Stackable up to 3 bags
- Superb stability
- Flat surface
SPECIFICATIONS
| BAR | 8 |
|---|---|
| PSI | 116 |
| Certification | EN 13731 |
TECHNICAL DATA
| Type | Part Number |
Dimensions | Weight | Working Pressure |
Air Requirement |
Max. Lifting Capacity |
Max. Lifting Height |
Max. Lifting Capacity at Max. Lifting Height |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | ||||||||
| [cm] / [inch] | [cm] / [inch] | [cm] / [inch] | [kg] / [lbs] | [BAR] / [PSI] | [l] / [cu./Ft.] | [t] / [US Tons] | [cm] / [inch] | [t] / [US Tons] | ||
| SFB-K 2/17 | 282314 | 45 / 18″ | 45 / 18″ | 2.5 / 1″ | 5.1 / 11.3 | 8 / 116 | 200 / 7.1 | 13.5 / 14.9 | 17 / 6.7″ | 2.3 /2.5 |
| SFB-K 7/17 | 519883 | 55 / 22″ | 55 / 22″ | 2.5 / 1″ | 7.3 / 16 | 8 / 116 | 224 / 7.9 | 21.1 / 23.2 | 17 / 6.7″ | 6.7 / 7.4 |
| SFB-K 10/17 | 519884 | 61 / 24″ | 61 / 24″ | 2.5 / 1″ | 9.2 / 20 | 8 / 116 | 350 / 12.4 | 25.2 / 27.7 | 17 / 6.7″ | 9.5 / 10.5 |
| SFB-K 20/17 | 519885 | 78 / 31″ | 78 / 31″ | 2.5 / 1″ | 14.5 / 32 | 8 / 116 | 520 / 18.4 | 44.6 / 49.1 | 17 / 6.7″ | 20.2 / 22.2 |
| SFB-K 33/17 | 519886 | 91.5 / 36″ | 91.5 / 36″ | 2.5 / 1″ | 20.6 / 45 | 8 / 116 | 810 / 28.6 | 64 / 70.4 | 17 / 6.7″ | 33.3 / 36.6 |
