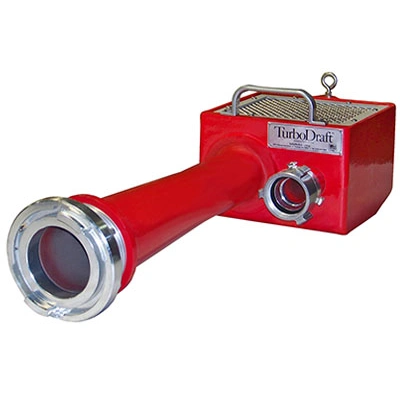

Schutte & Koerting 5″ TurboDraft Unit
SKU: TD-TURBO5
Harnessing powerful jet siphon technology, the Schutte & Koerting 5″ TurboDraft Unit allows firefighters to efficiently access water from remote or difficult sources, ensuring a dependable supply for emergency operations.
PRODUCT DESCRIPTION
The Schutte & Koerting 5″ TurboDraft™ unit is used primarily for accessing static water sources that are not easily reached using typical drafting techniques. The 5″ unit can also be used at tanker fill sites during water shuttle operations, fire scene overhaul, transferring of contaminated liquids, dewatering of low lying areas and swimming pools, for direct fire attack, fire scene water management, accessing shallow static water, among others.
SPECIFICATIONS
| Overall Length | 39″ |
|---|---|
| Weight | 48.5 lbs. |
| Connections | 2 1/2″ NST Female Inlet; 5″ Storz Male Outlet |
| Shipping Dimensions | 48″L x 16″W x 16″H |
| Shipping Weight | Domestic: 60 lbs. |
| International | 100 lbs |

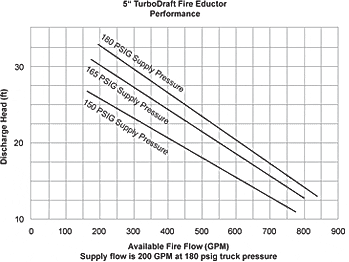

TECHNICAL DATA
Length of 5″ Hose: |
Lift: |
Pump Discharge Pressure: |
Max. Avail. Fire Flow: |
|||
50′ |
10′ 20′ |
175 PSIG 175 PSIG |
670 GPM 470 GPM |
|||
100′ |
10′ 20′ |
180 PSIG 180 PSIG |
570 GPM 400 GPM |
|||
150′ |
10′ 20′ |
185 PSIG 185 PSIG |
480 GPM 325 GPM |
|||
200′ |
10′ 20′ |
190 PSIG 190 PSIG |
440 GPM 280 GPM |
