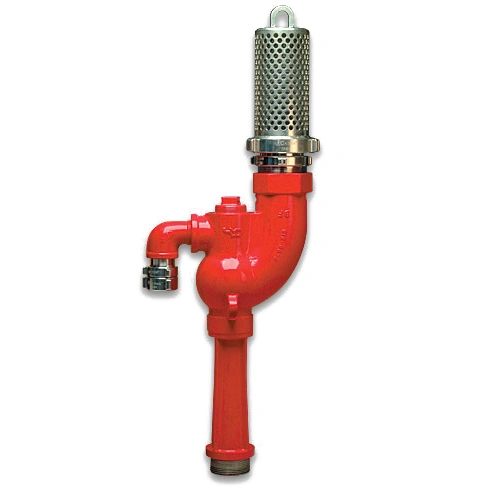

Schutte & Koerting 2 1/2″ TurboDraft Unit
SKU: TD-TURBO2
With innovative jet siphon technology, the Schutte & Koerting 2 1/2″ TurboDraft Unit enables firefighters to draw water from distant or low-access sources, ensuring a reliable supply in challenging environments.
PRODUCT DESCRIPTION

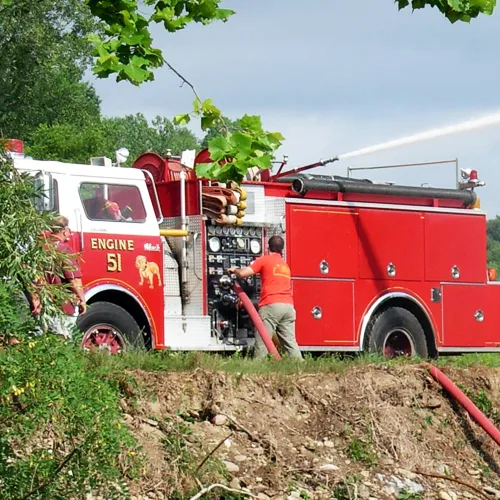

The Schutte & Koerting 2-1/2″ TurboDraft Fire Eductor allows fire companies to tap into water supplies like ponds, streams, and swimming pools up to 250′ away and can generate flows up to 264 GPM. Rural fire companies need creative solutions to utilize water sources that are not accessible using typical drafting techniques.
SPECIFICATIONS
Overall Length |
30″ |
Weight |
20 lbs. |
Inlet |
1-1/2″ NST Female |
Outlet |
2-1/2″ NST Male |
Shipping Dimensions |
36″ L x 12″ W x 12″ H |
Shipping Weight |
45 lbs. |
TECHNICAL DATA
2-1/2″ Hose Length |
Lift |
Pump Discharge Pressure |
Max. Avail. Flow |
|||
50′ |
10′ 20′ |
175 PSIG 175 PSIG |
264 GPM 185 GPM |
|||
100′ |
10′ 20′ |
180 PSIG 180 PSIG |
224 GPM 157 GPM |
|||
150′ |
10′ 20′ |
185 PSIG 185 PSIG |
189 GPM 128 GPM |
|||
200′ |
10′ 20′ |
190 PSIG 190 PSIG |
173 GPM 110 GPM |
