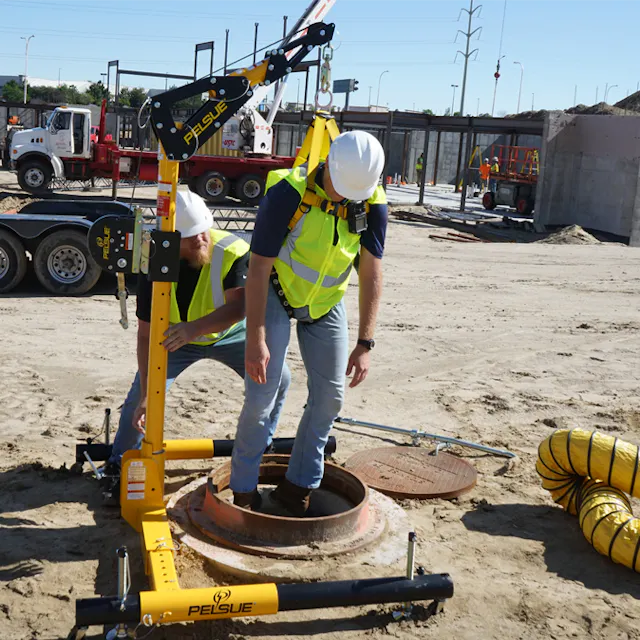

Pelsue® Portable Davit Fall Protection System
The Pelsue® Portable Davit Fall Protection System provides a mobile and reliable solution for fall protection in various work sites, ensuring safety and stability.
PRODUCT DESCRIPTION
The Pelsue® Davit System is extremely versatile and can be used for both fall protection and rescue & retrieval. The system includes a universal bracket for the mounting of a hoist, standard SRL, or 3-Way SRL, and offers an additional mounting location for using two systems.
All Pelsue® Davit Systems are built from structural aluminum, allowing for lightweight and portable use. They are also specially engineered to be fully set up in about 5 minutes. The Pelsue® Davit System is proudly made in America with the highest quality materials to ensure the system will provide you years of service.
Every Davit system includes 1 hoist bracket and mounting plate for use with a standard retrieval hoist. No hoist included. All Pelsue® Davit Systems are man rated to 310 lbs.
TECHNICAL SPECIFICATIONS
Complete Arms |
Description |
Weight |
|---|---|---|
DK1824 |
Davit Mast, includes center post (CP60), elbow (EM01), and 18 / 24 in. (45.72 / 60.96 cm) offset arm (BA24) (Base and hoist sold separately) |
45 lbs. (20.41 kg) |
DK3036 |
Davit Mast, includes center post (CP60), elbow (EM01), and 30 /36 in. (76.2 / 91.44 cm) offset arm (BA36) (Base and hoist sold separately) |
48 lbs. (21.77 kg) |
DK4248 |
Davit Mast, includes center post (CP60), elbow (EM01), and 42 /48 in. (106.68 / 121.92 cm) offset arm (BA48) (Base and hoist sold separately) |
51 lbs. (23.13 kg) |
Individual Parts |
Description |
Weight |
|---|---|---|
BA24 |
Offset Arm, aluminum, with pulley & U-bracket, 18 / 24 in. (45.72 / 60.96 cm) offset reach |
7 lbs. (3.18 kg) |
BA36 |
Offset Arm, aluminum, with pulley & U-bracket, 30 /36 in. (76.2 / 91.44 cm) offset reach |
10 lbs. (4.54 kg) |
BA48 |
Offset Arm, aluminum, with pulley & U-bracket, 42 /48 in. (106.68 / 121.92 cm) offset reach |
12 lbs. (5.44 kg) |
EM01 |
Elbow, fabricated aluminum, reversible for different offset lengths |
13 lbs. (5.9 kg) |
CP60 |
Center post with hoist mounting bracket, aluminum, 60 in. (152.4 cm) H |
26 lbs. (11.79 kg) |
CPX-15 |
Center post extension, powder coated steel, 15 in. (38.1 cm) |
22 lbs. (9.98 kg) |
CPX-24 |
Center post extension, powder coated steel, 24 in. (60.96 cm) |
25 lbs. (11.34 kg) |
CPX-36 |
Center post extension, powder coated steel, 36 in. (91.44 cm) |
31 lbs. (14.06 kg) |
TECHNICAL DATA
Portable Davit Bases
For Use With |
Description |
Weight |
|---|---|---|
EB56 |
Adjustable, 36 – 56 in. (91.44 – 142.24 cm) inside width, 18 in. (45.72 cm) maximum offset |
100 lbs. (45.36 kg) |
EB66 |
Adjustable, 46 – 66 in. (116.84 – 167.64 cm) inside width, 24 in. (60.96 cm) maximum offset |
115 lbs. (52.16 kg) |
DBF-43A |
Folding, 48 W x 36 in. (121.92 W x 91.44 cm)deep nominally, 18 in. (45.72 cm) maximum offset, aluminum |
35 lbs. (15.88 kg) |
