Trelleborg™ Conventional Lifting Bags – 10 BAR (145 PSI)

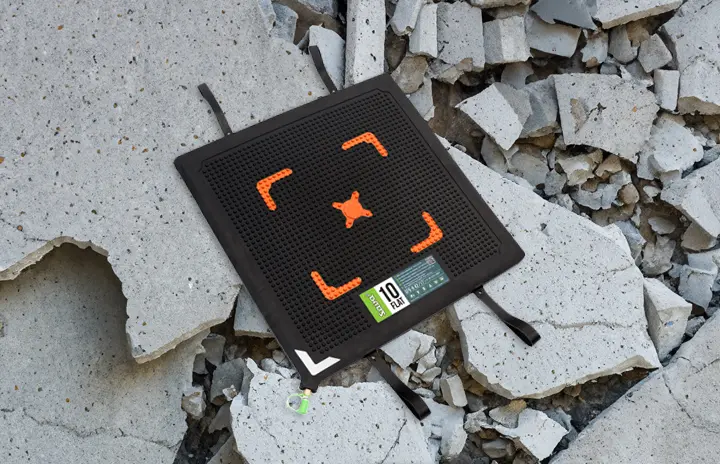

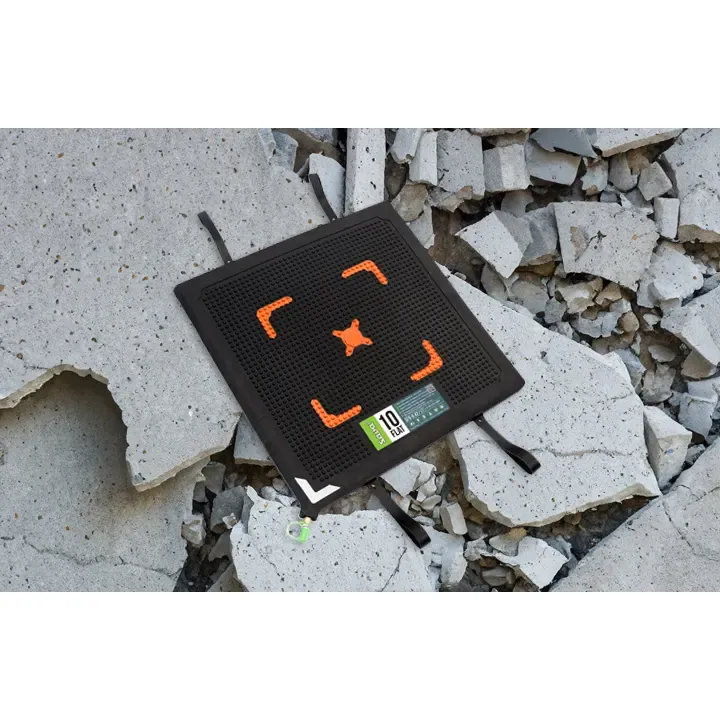

Trelleborg™ Conventional Lifting Bags – 10 BAR (145 PSI) are heavy-duty, high-pressure lifting bags designed to provide reliable and efficient lifting in challenging industrial and rescue scenarios.
PRODUCT DESCRIPTION
Trelleborg™ high-pressure lifting bags are used for lifting the heaviest loads. High-pressure lifting bags exert maximum force in a concentrated area, making them ideal when lifting rigid structures in tight places. Their unique structure also allows use in load shifting, heavy truck or aircraft recovery and different moving situations.
FEATURES
- Increased lifting capacity
- Compatible with 8 BAR (116 PSI) bags
- Heavy duty
SPECIFICATIONS
| BAR | 10 |
|---|---|
| PSI | 145 |
| Certification | EN 13731 |
TECHNICAL DATA
| Type | Part Number |
Dimensions | Weight | Working Pressure |
Air Requirement |
Max. Lifting Capacity |
Max. Lifting Height |
||
|---|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | |||||||
| [cm] / [inch] | [cm] / [inch] | [cm] / [inch] | [kg] / [lbs] | [BAR] / [PSI] | [l] / [cu./Ft.] | [t] / [US Tons] | [cm] / [inch] | ||
| SLK- H 1 | 291240 | 15 / 6″ | 15 / 6″ | 2.5 / 1″ | 0.55 / 1.2 | 10 / 145 | 7 / 0.3 | 1.2 / 1.3 | 8 / 3.1″ |
| SLK- H 4 | 291241 | 22.5 / 9″ | 22.5 / 9″ | 2.5 / 1″ | 1.25 / 3 | 10 / 145 | 19 / 0.7 | 3.3 / 3.6 | 13 / 5.1″ |
| SLK- H 7 | 291242 | 30 / 12″ | 30 / 12″ | 2.5 / 1″ | 2 / 4 | 10 / 145 | 52 / 1.9 | 6.8 / 7.5 | 16 / 6.3″ |
| SLK- H 12 | 291243 | 38 / 15″ | 38 / 15″ | 2.5 / 1″ | 3.5 / 8 | 10 / 145 | 106 / 3.8 | 12.1 / 13.3 | 21 / 8.3″ |
| SLK- H 17 | 291244 | 45 / 18″ | 45 / 18″ | 2.5 / 1″ | 5 / 11 | 10 / 145 | 186 / 6.6 | 16.6 / 18.3 | 25 / 9.3″ |
| SLK- H 26 | 291245 | 55 / 22″ | 55 / 22″ | 2.5 / 1″ | 7 / 15 | 10 / 145 | 362 / 12.8 | 26.3 / 28.9 | 30 / 11.8″ |
| SLK- H 32 | 291246 | 61 / 24″ | 61 / 24″ | 2.5 / 1″ | 9 / 20 | 10 / 145 | 508 / 18.0 | 31.8 / 35 | 34 / 13.4″ |
| SLK- H 41 | 291247 | 69 / 27″ | 69 / 27″ | 2.5 / 1″ | 11 / 24 | 10 / 145 | 759 / 26.8 | 41.3 / 45.4 | 38 / 15″ |
| SLK- H 56 | 291248 | 78 / 31″ | 78 / 31″ | 2.5 / 1″ | 14.1 / 31 | 10 / 145 | 1122 / 39.7 | 55.8 / 61.4 | 42 / 16.5″ |
| SLK- H 69 | 291249 | 87 / 34″ | 87 / 34″ | 2.5 / 1″ | 18.2 / 40 | 10 / 145 | 1595 / 56.4 | 68.7 / 75.6 | 47 / 18.5″ |
| SLK- H 88 | 291250 | 94.5 / 37″ | 94.5 / 37″ | 2.5 / 1″ | 22.7 / 50 | 10 / 145 | 1650 / 58.3 | 88 / 96.8 | 52 / 20.5″ |
