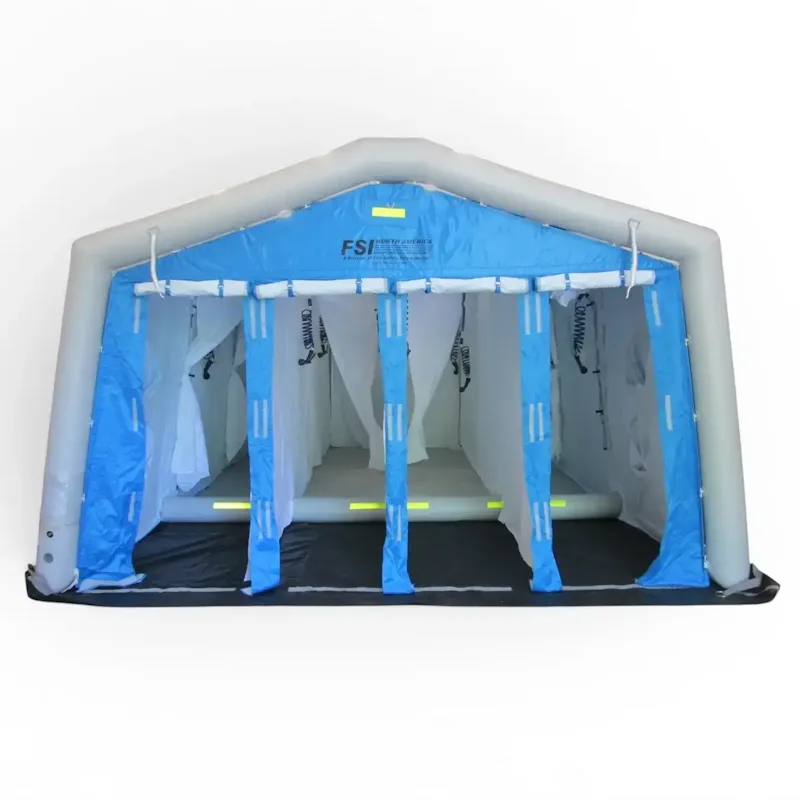

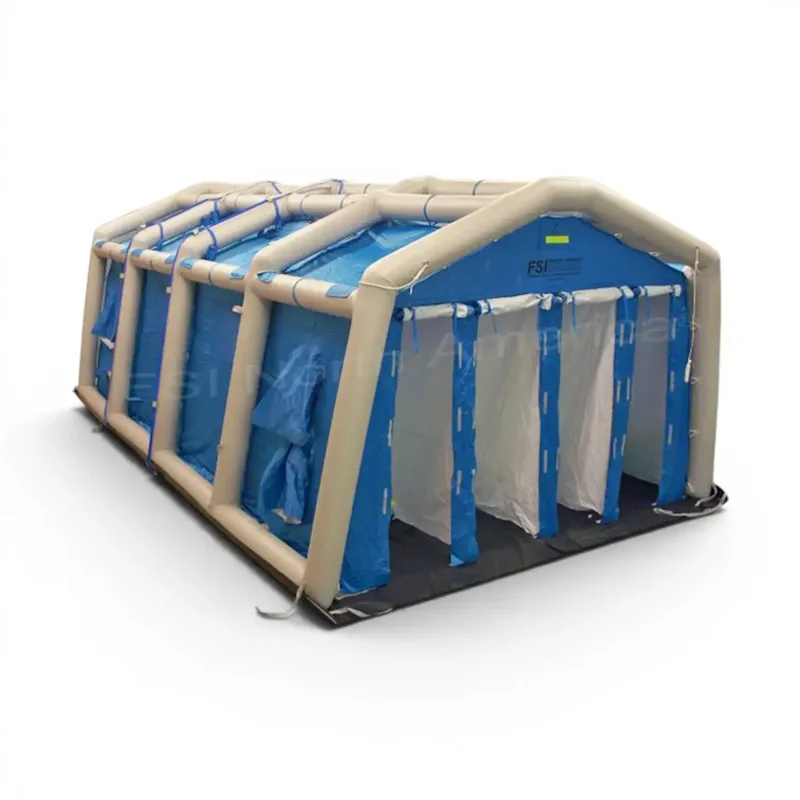

FSI® DAT4070S Mass Casualty Decon Shower
The FSI® DAT4070S Mass Casualty Decon Shower is a robust, high-capacity portable system designed to rapidly decontaminate large numbers of individuals in emergency mass casualty events.
PRODUCT DESCRIPTION
The FSI® DAT4070S is a four-line (43.5” /1.1 M X 4 Lines W), 3 or 4-station mass casualty decon shower which handles four parallel lines of casualties at the same time in three or four sequential stations – (1) undress, (2) detergent shower # 1 – (3) rinse shower # 2 OR handle 2 personnel in separate showers simultaneously in each lane, (4) redress.
This unit deploys in under three minutes, processes four non-ambulatory patients on stretchers or up to 8 ambulatory personnel at a time and/or any combination of the above.
Undress and redress stations are dry (plumbing is possible and optional); shower stations may include 3 showerheads and one hanging coiled ½”/13 mm hose line with attached multiple function spray nozzle which thoroughly drenches and decontaminates via a fine water mist.
The DAT4070S offers a top center air berm running the entire length of the unit at the roof line and secondary full center length air berms running on either side of the main center berm approx. 18 – 24″ off center.
FEATURES
- Heavy Duty Air Berms
FSI® utilizes extremely heavy duty air berm construction in all DAT® series mass casualty portable hazmat decon shower systems. FSI® uses the same 1100Dtex, quadruple overlapped and glued berms found in our wide range of transom rescue boats – known for the extreme conditions they are subjected to. - Extremely Rapid Deployment
FSI® Portable Shower Systems are compact, fully integrated, and supplied complete in a heavy duty carry sleeve/bag. FSI® Shower systems inflate virtually unaided – with the use of compressed air, or via a supplied electric inflator/deflator with a hands-free connector within minutes (size of unit and method of inflation dependent). The inflatable decontamination shower units are meant to be deployed simply and quickly – with modest training and few personnel. - Heavy Duty Construction
No matter which model or size, FSI® shower systems offer incredible stability even in high wind conditions up to 70 mph (115 kph) and more when properly tied down/staked off. - ANSI #113 Compliant – Ideal For Gross Decon Per NFPA 1851
SPECIFICATIONS
| Dimensions | Approx. 14.5′ W X 23′ L X 9′ H |
|---|---|
| Area | 330 sq. ft. |
| Weight | 340 lbs. |
| Colors | FSI® Blue, Green, White, Tan/Sand. Other colors offered P.O.A. |
| Certification | NFPA 1851 |
