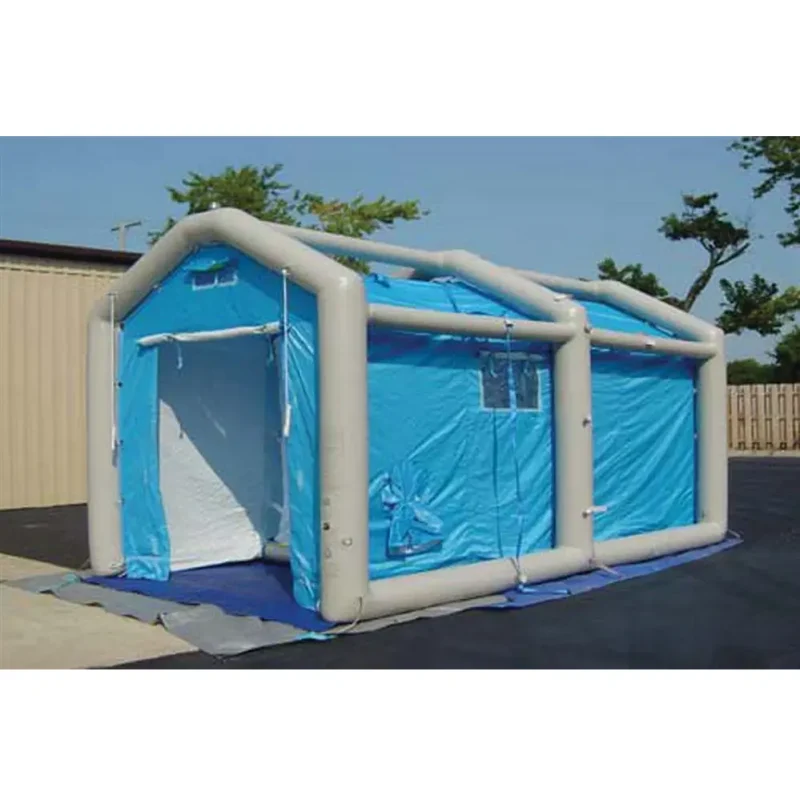

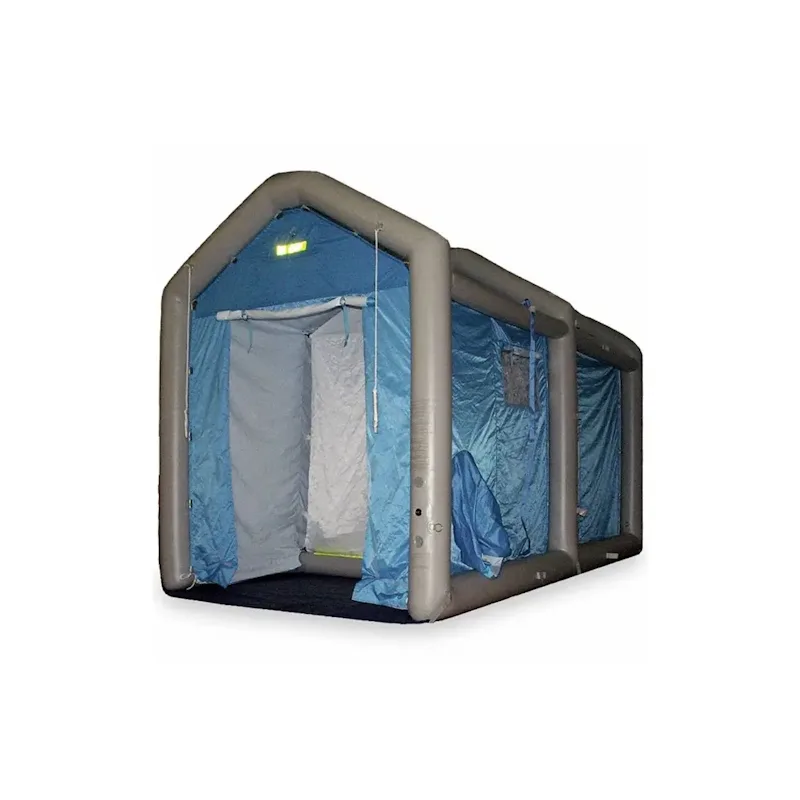

FSI® DAT2525S Mass Casualty Decon Shower

The FSI® DAT®2525S Mass Casualty Single Line Decon Shower is a single lane wide 7′ W X 13’ L X 8’ H (2.13 X 3.95 X 2.43 M), 3 station – 4’L, 5’L, 4’L (1.2 M, 1.50 M, 1.2 M) and handles a single line of ambulatory casualties in three sequential stations — (1) undress, (2) shower (3) redress. This unit deploys in under two minutes, and processes three ambulatory personnel at a time (one in each stage of the unit). Undress and redress stations are dry (plumbing is possible and optional); the middle shower station includes 7 shower heads (2 sections of 3 shower heads and one overhead shower head) and 2 hanging coiled ½”/13 mm hose lines with attached multiple function trigger guns which thoroughly drench and decontaminate via a fine water mist for a total of 9 shower heads as standard.

FEATURES

• Heavy Duty Air Berms
  FSI® utilizes extremely heavy duty air berm construction in all DAT® series mass casualty portable hazmat decon shower systems. FSI® uses the same 1100Dtex, quadruple overlapped and glued berms found in our wide range of transom rescue boats – known for the extreme conditions they are subjected to.
• Extremely Rapid Deployment
  FSI® Portable Shower Systems are compact, fully integrated, and supplied complete in a heavy duty carry sleeve/bag. FSI® Shower systems inflate virtually unaided – with the use of compressed air, or via a supplied electric inflator/deflator with a hands-free connector within minutes (size of unit and method of inflation dependent). The inflatable decontamination shower units are meant to be deployed simply and quickly – with modest training and few personnel.
• Heavy Duty Construction
  No matter which model or size, FSI® shower systems offer incredible stability even in high wind conditions up to 70 mph (115 kph) and more when properly tied down/staked off.
• ANSI #113 Compliant – Ideal for Gross Decon Per NFPA 1851

SPECIFICATIONS
