April 30, 20243M™ DBI-SALA® Ultra-Lok™ Self Retracting Lifeline – Rope (20 ft)

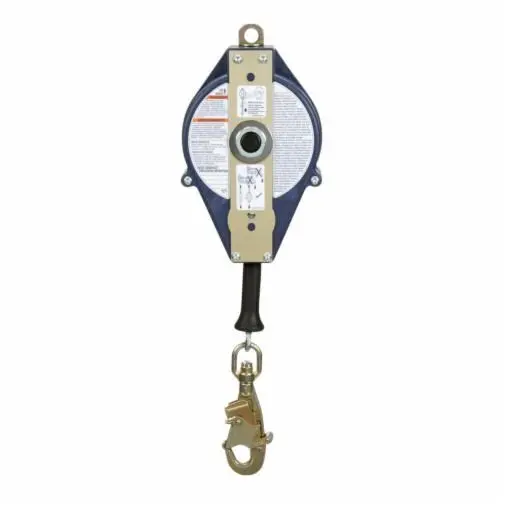

The 3M™ DBI-SALA® Ultra-Lok™ Self-Retracting Lifeline – Rope (20 ft) delivers reliable fall protection with a durable, self-retracting rope, ensuring safety and mobility for workers in a variety of elevated work environments.
PRODUCT DESCRIPTION
The 3M™ DBI-SALA® Ultra-Lok™ Self-Retracting Lifeline (SRL) is durable, lightweight, and engineered for safety, efficiency, and reliability. It is available with synthetic rope, stainless steel, or galvanized steel cable lifeline material, and an aluminum or thermoplastic housing. The 3M™ DBI-SALA® Ultra-Lok™ Self-Retracting Lifeline (SRL) RSQ™ design is a dual-mode SRL for fall arrest and integrated rescue systems. 3M™ DBI-SALA® Ultra-Lok™ Self-Retracting Lifelines are available in SRL, Retrieval SRL, and RSQ™ configurations.
The 3M™ DBI-SALA® Ultra-Lok™ Self-Retracting Lifeline (SRL) extends and retracts with the users as they perform their work task. Should a fall occur, the speed sensing brake system will activate helping stop the fall and reducing the forces imposed on the user to safe levels. 3M™ DBI-SALA® Ultra-Lok™ Self-Retracting Lifelines represent quality and durable systems that help ensure performance when it is needed the most.
FEATURES
- Durable aluminum or thermoplastic housing
- Available in multiple configurations, lifeline lengths, and material types
- Reliable fall arrest energy dissipation system
- Quick activating speed-sensing locking system
- Constant contact pawl system
- Swiveling anchorage connector loop
- Swiveling self-locking snap hook with impact indicator
- 3M™ Connected Safety ID (CSID) embedded in polyurethane bumper
- Emergency retrieval system available on some models
SPECIFICATIONS
Brands | Ultra-Lok™ |
---|---|
Connected Safety ID Equipped | Yes |
Dimensions | 10.50 x 6.90 x 3.10 in |
Housing Material | Urethane Thermoplastic |
Lifeline Hook Material | Zinc Plated Steel |
Lifeline Length (Imperial) | 20 ft |
Lifeline Length (Metric) | 6.1 m |
Lifeline Material | Rope |
Mounting Type | Block to Anchor Point |
Product Series | Ultra-Lok™ |
Product Type | Self Retracting Lifeline – Rope |
Recommended Industry | General Industrial, Transportation, Utilities |
Specifications Met | CSA Z259.2.2 Type 2, Capital Safety Gen. Mfg. Req. |
Weight (Imperial) | 10 lbs. |
Weight Capacity | 75-310 lbs. (34-141kg) |
Overall Length (Imperial) | 20 ft |
RESOURCES
- Self Retracting Devices in Leading Edge Applications
- Self Retracting Lifelines on Drilling and Service Rigs Technical Bulletin
- Servicing/Inspection of Self Retracting Lifelines Technical Bulletin
- Taglines for Self Retracting Lifelines Technical Bulletin
- Use of Self Retracting Lifelines in Aerial Work Platforms Technical Bulletin
- Use of Self Retracting Lifelines in Training Environments Technical Bulletin
- ANSI/ASSE Z359.14-2012 Self Retracting Lifeline Supplement Instruction Manual
- Ultra-Lok™ Self Retracting Lifeline Instruction Manual
